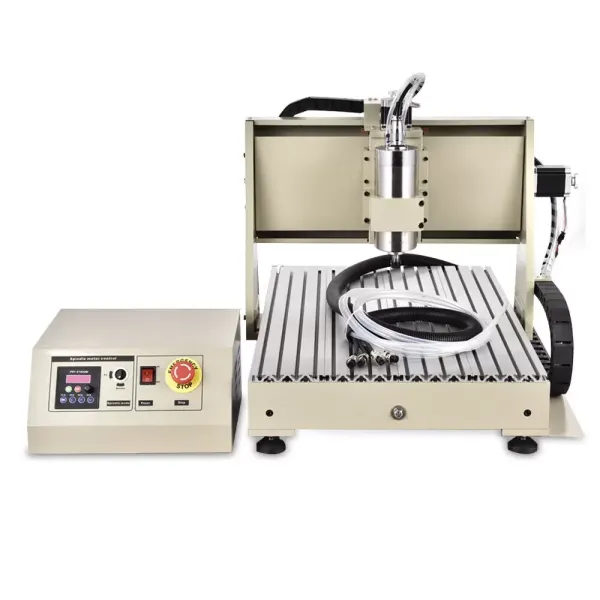

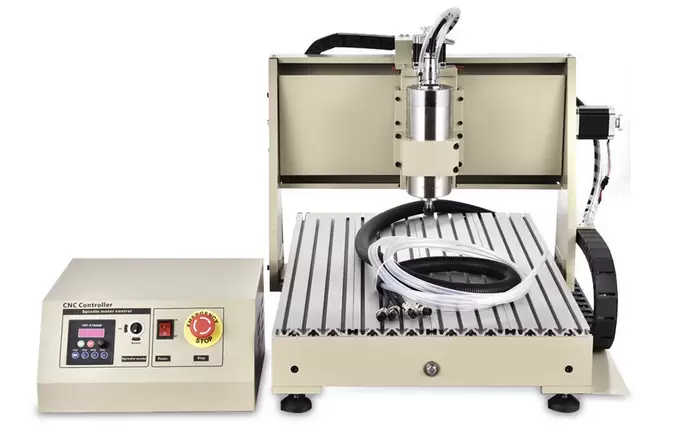

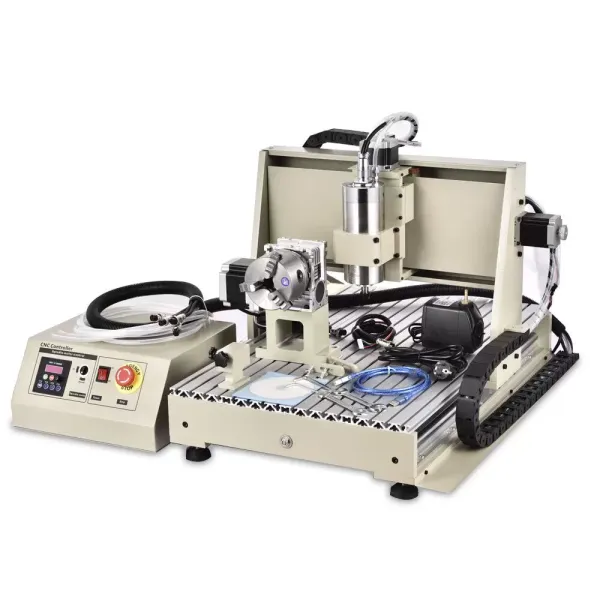

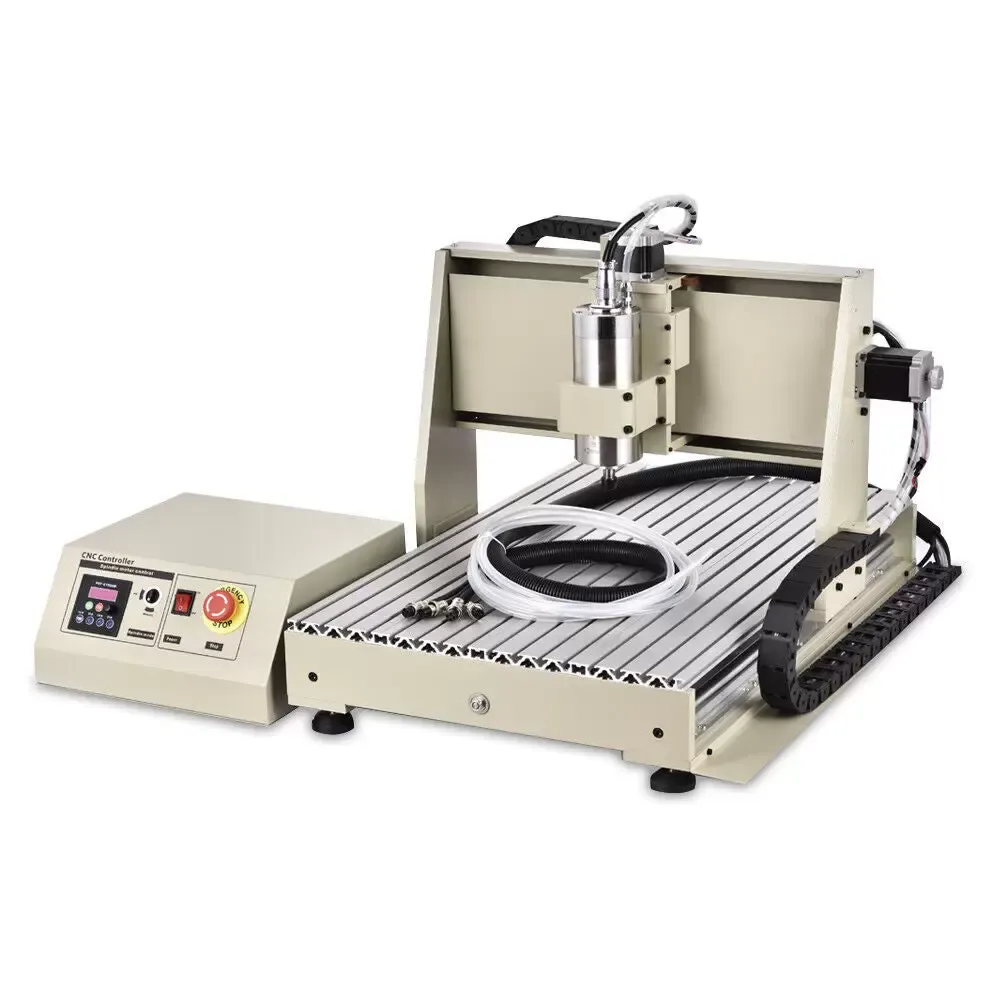

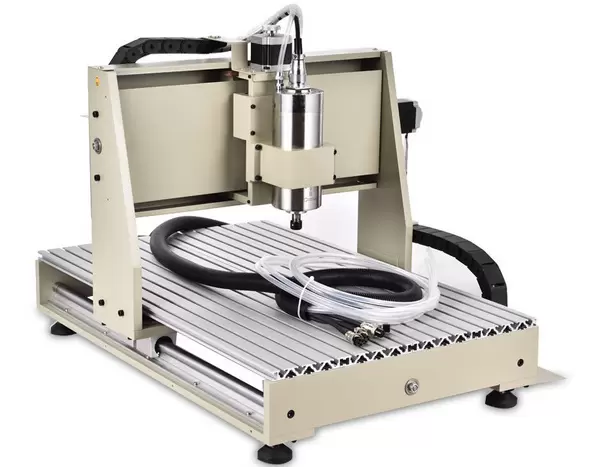

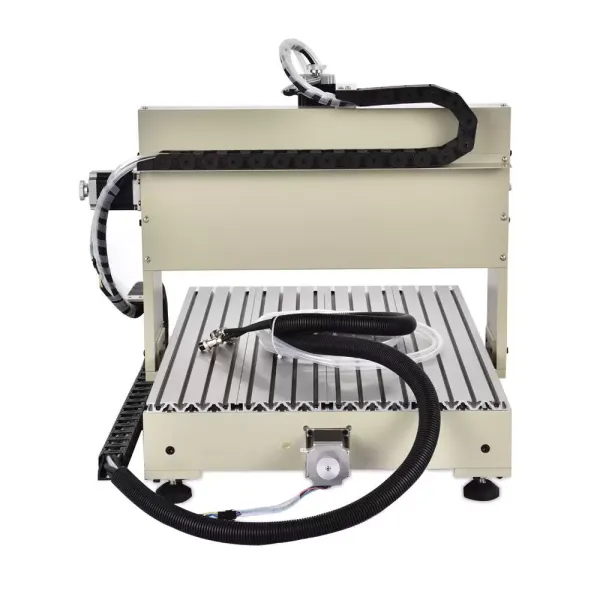

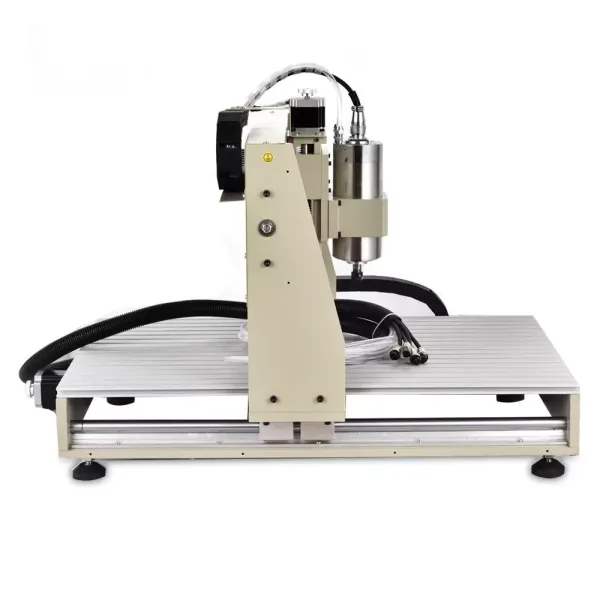

●This CNC 6040T machine is suitable for industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
●It can work with various materials(metallic & non-metallic), such as: wood, pmma or other plastic, MDF board, native wood, PVC, Acrylic, wood, composite board plywood. and soft metal, like aluminum, copper and silver to engrave them into 3D/2D works etc.
●It can used for engraving: advertising signs, PCB, nameplates, badges, seals, bronzing plate, aluminum alloy, acrylic plates, ABS resin double color plate, PVC foaming board, indentation plates, signs, construction models,
instrument panels, wooden products, etc.
● The mini CNC router Frame is movable. The machine can connect with computer as other external device such as printer, scanner...
●With the assist of the CNC ROUTER 6040T, your design idea will be real-time display.

The NEW 1.5KW water-cooled VFD is available operating for long time,which can reinforced the processing abilty of the machine and can be used to process aluminum alloy and hard wood.

Water cooling spindle works more stable and durable.

CNC Engraving Machine Parameters:
X, Y, Z Working Area: 600(Y)*390（X）*120(Z)mm
Outside dimension: 865*680*570mm（L*W*H）
Table size: 770（Y）*490（X）mm
Lathe structure: 6061/6063 Aluminium alloy
Max. Feeding height: ≤100mm

Drive Unit:
X axis---1605 Ball Screws
Y axis---1605 Ball Screws
Z axis---1204 Ball Screws

Sliding Unit:
X axis---High intensity Chromeplate shaft
Y axis---High intensity Chromeplate shaft
Z axis---High intensity Chromeplate shaft
tepping motor: 57 two-phase 3A 150N.cm

Spindle motor:
tips：1. The spindle motor must connect with the VFD.
2. It cannot directly connect with the supply voltage (AC 220V).
3. Please don’t change the data setting of the VFD if you are not professional technicians, or it might damage the spindle motor.
Outside dimension: 65*158mm
Material: 304 stainless steel, Copper coil, Pressure cast aluminum pipe water jacket
VOLTS, current, power: AC 220V, 50Hz, 5A,1.5 KW VFD
Spindle speed: 24000 rpm
Max working frequency: 400Hz
Principal axis collet: ER11collet, Standard configuration :6mm
Nut Model: ER11-A
Cooling: Water-cooling
Speed mode: By adjusting the VFD output voltage and operating frequency from 0-24000RPM
Lubrication way: lubricated by high grease
Repeat accuracy: 0.05mm
Spindle precision: radial beat acuities 0.03mm
Carving Instructions: G code / TAB files / nc file / NCC files
Communication interface: through USB connection with computer
Software environment: windows XP / win7 32/64 bits system
Maximum speed: 0-4000mm/min
Carving speed: 0-2500mm/min(different materials differ)

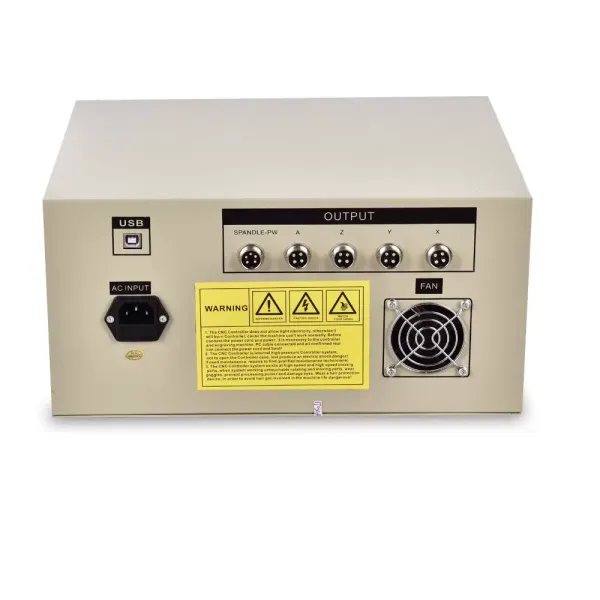

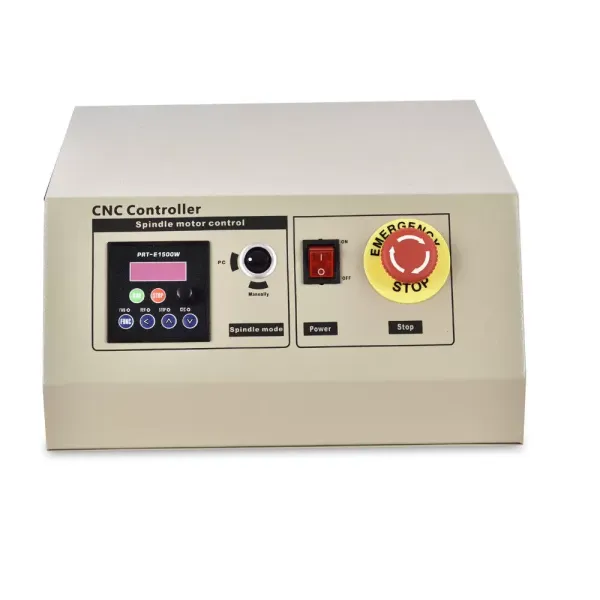

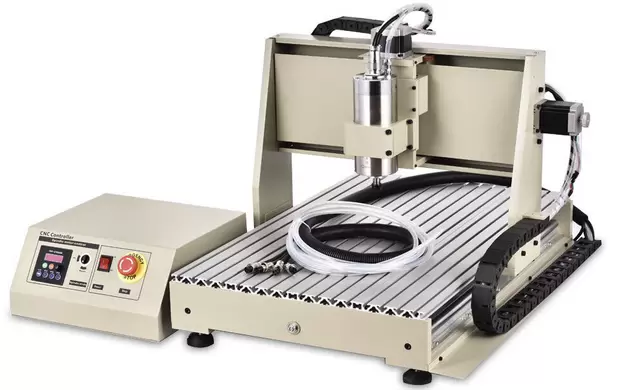

Control Box Parameters:
Operating Voltage: AC 220V
Control unit: Toroidal transformer + PWM power supply module + TB6560 stepping motor drive
Computer connection: USB port
Command code: G code
Acceptable software: Mach3, EMC2
Protection: Emergency stop button

How to USE:
1. Assembling and locating the CNC machine on steady desk well.
2. Make sure that your computer has a USB port output.
3. Place the contral box in a ventilated dry place where there is no dust,no moisture
4. Connecting the control box with the CNC machine and you computer and make sure the plug will not come off.
5. Correctly connect the machine with the controller. Don't suspended the cable which connect the Spindle motor with axis(X,Y,Z,A).Otherwise. It will damage the driver of the controller.
6. Correctly instal the Spindle motor and the heat pump. The heat pump should be covered completely in the water, then turned on the electric current to check whether the water-cooling system working well.
7. Installing a CNC control software and Drive such as the MACH 3 or EMC2on your computer.
8. Fllowing our manual or guideline to set uo the software.
9. Before turn on the machine, please check all the cable and water- cooling system to make sure they are working fine.
10. You can enjoy making you dream with using our CNC machine now.
