●Small and practical, no problem for using on your desk.
●The control system is open source (technology that controls system is provided) for some players who like DIY.
●Desktop DIY mini CNC engraving machine for carving and more cost-effective than normal engraving machine.
●Support our professional English design software for Win 7, XP, Win 8, Win 10.

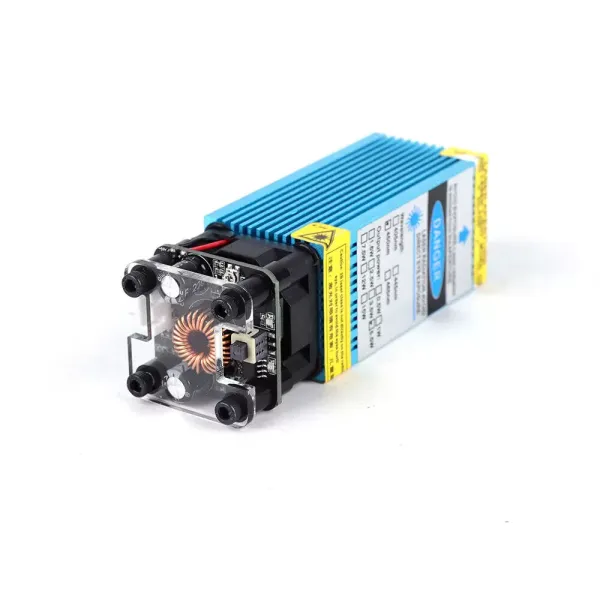

●5500mw optional laser module with heatsink, high laser engraving power and long working time.
●Come with a pair of protective glasses to protect your eyes from getting hurt by laser.
●300 x 180 x 45mm large working area, Control Software: GRBL (include ER11 chuck).

Aluminum alloy and nylon material with fine workmanship show excellence in quality.

Specifications:
Model: CNC3018PRO
Laser Power: 5500mw
Laser Wavelength: 450nm (5500mw)
Material: Aluminum Alloy Phenolic Resin
Main Color: Black Silver
Power Supply: AC 100-240V Output 24V 5.6A
Supported OS: Windows XP / Win 7 / Win 8 / Win 10 (32/64)
Supported Formats: jpg / bmp / png
Communication Port: Micro USB
Engraving Area: 300 x 180 x 45mm
Frame Size: 400 x 330 x 240mm(Not include the motor protrusion part)
Table-board Size: 300 x 180mm

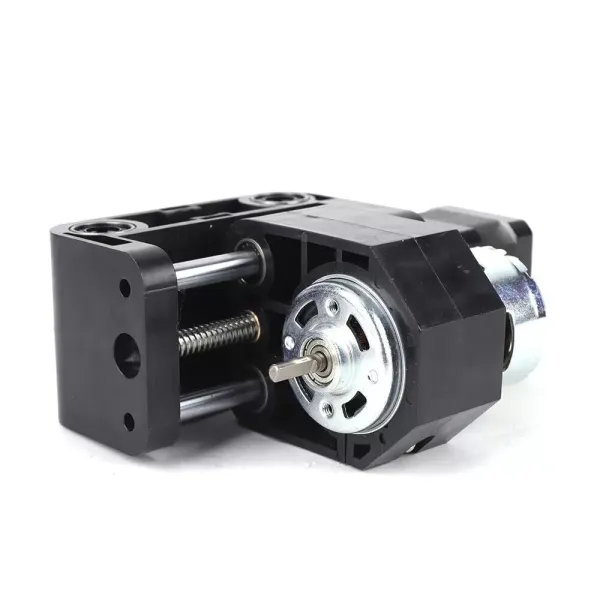

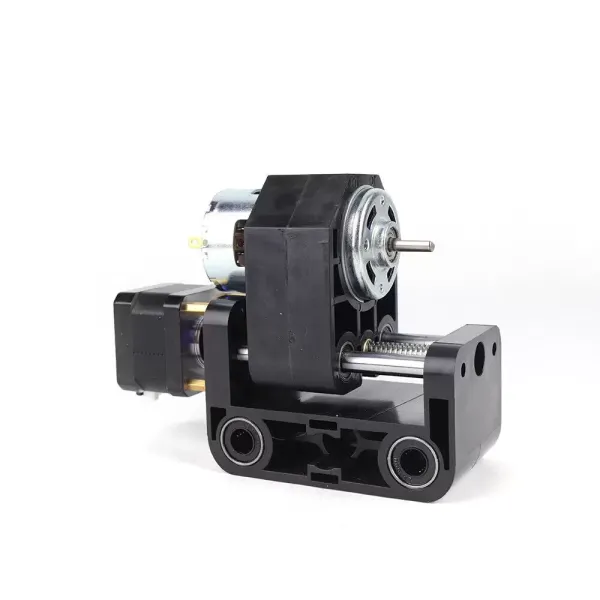

Spindle: 775 Spindle Motor 24V: 10000r/min
Spindle Chuck: ER11
Step Motor: Fuselage length 34mm, Current 1.33A, 12v. Torque 0.25N/M
Drill Bits: Tip 0.1mm, 30 degree, diameter 3.175mm (Contains 10 pcs)
Software: GRBL Control
Laser Quick Replace: Support
Engrave Mode: Image Engraving, Text Carving, Scanning Carving, Contour Carving, Pixel Carving
Can Not Carve Objects: All metals, glass, stone, ceramics, jewelry, silver, reflective material, translucent & transparent material.
Can Carve Objects: All wood, bamboo, paper, plastics, leather, rubber, horn, sponge sheet, etc.
Package Size: 45 * 23 * 17cm / 17.7 * 9.1 * 6.7in
Package Weight: 8000g

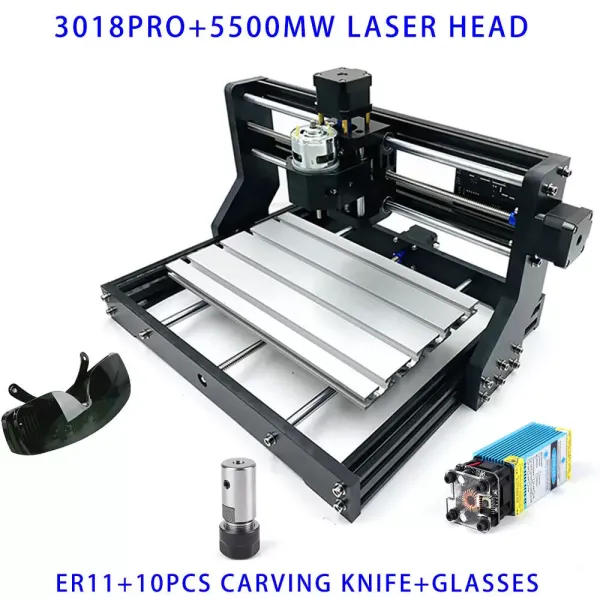

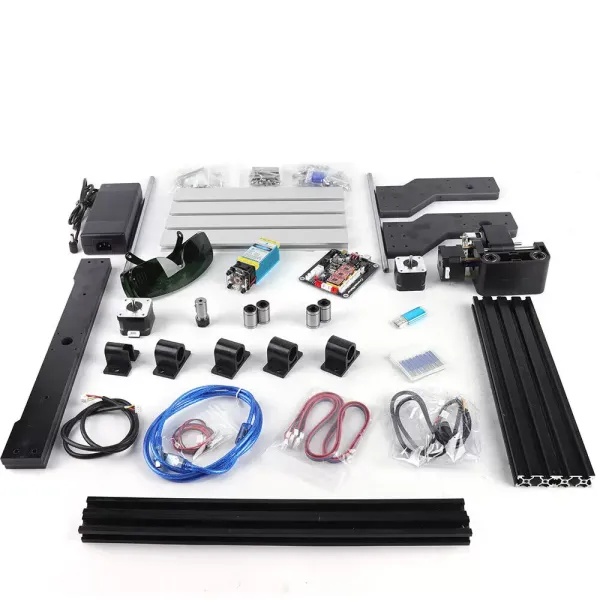

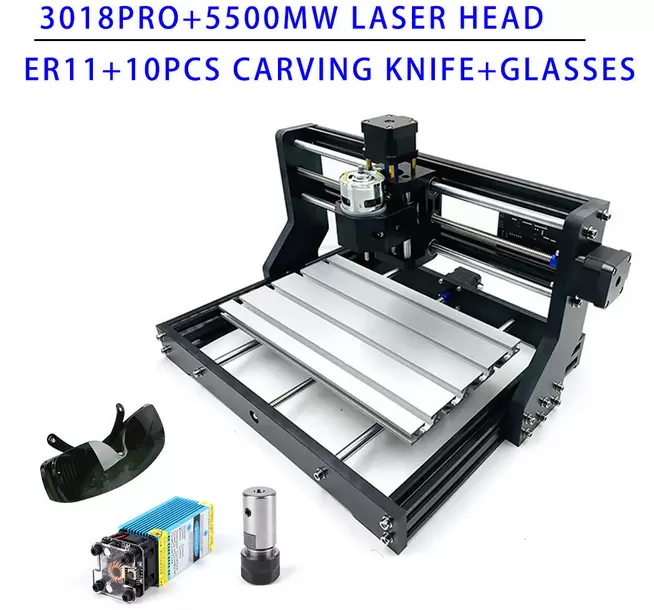

Package List: (DIY Kit, Need To Assemble By Yourself.)
1 * DIY CNC Engraving Machine Kit
1 * 5500w Laser Head
1 * Protective Glasses
10 * Drill Bits
1 * ER11 Spindle Chuck

NOTE:
1. The machine is DIY Kit, Need To Assemble By Yourself.
2. Materials can be engraved: wood, bamboo, paper, plastics, leather, rubber, horn, sponge sheet or other flammable plastic (such as phone case, mouse, pencil, name card, wallet, plastic comb).
3. Materials can’t be engraved: metals, glass, stone, ceramics, jewelry, silver, reflective material, translucent & transparent material.
4. Please wear laser goggles during using and avoid touching the laser directly with your eyes and skin!
