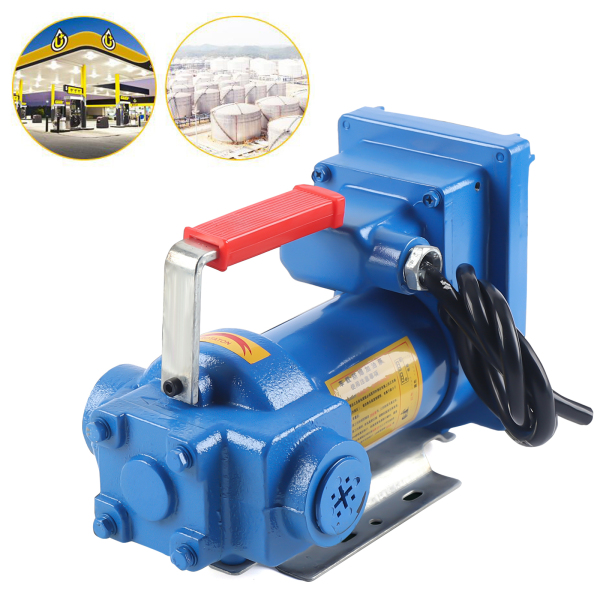

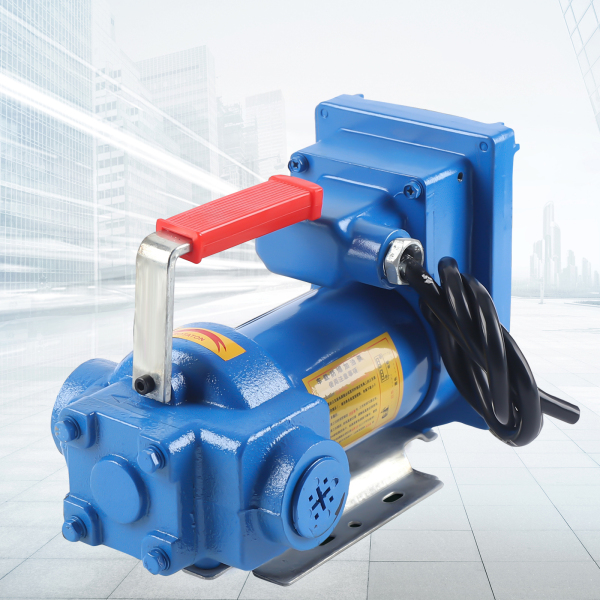

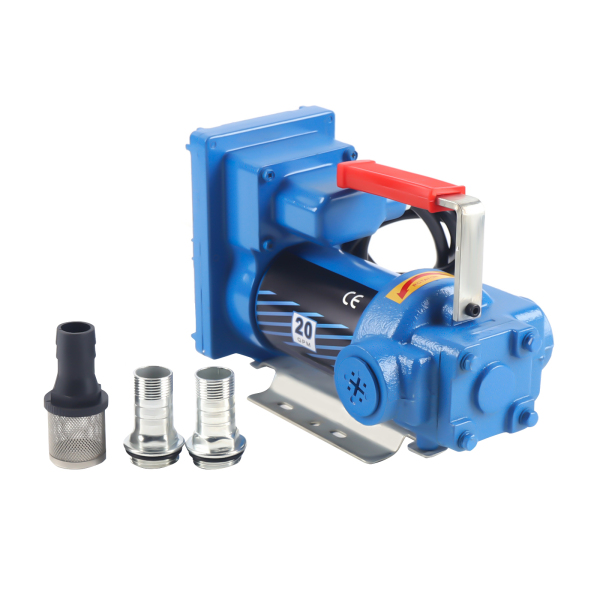

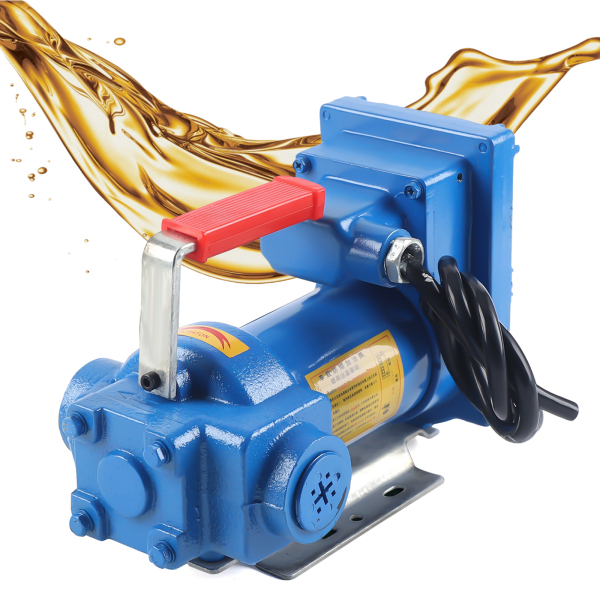

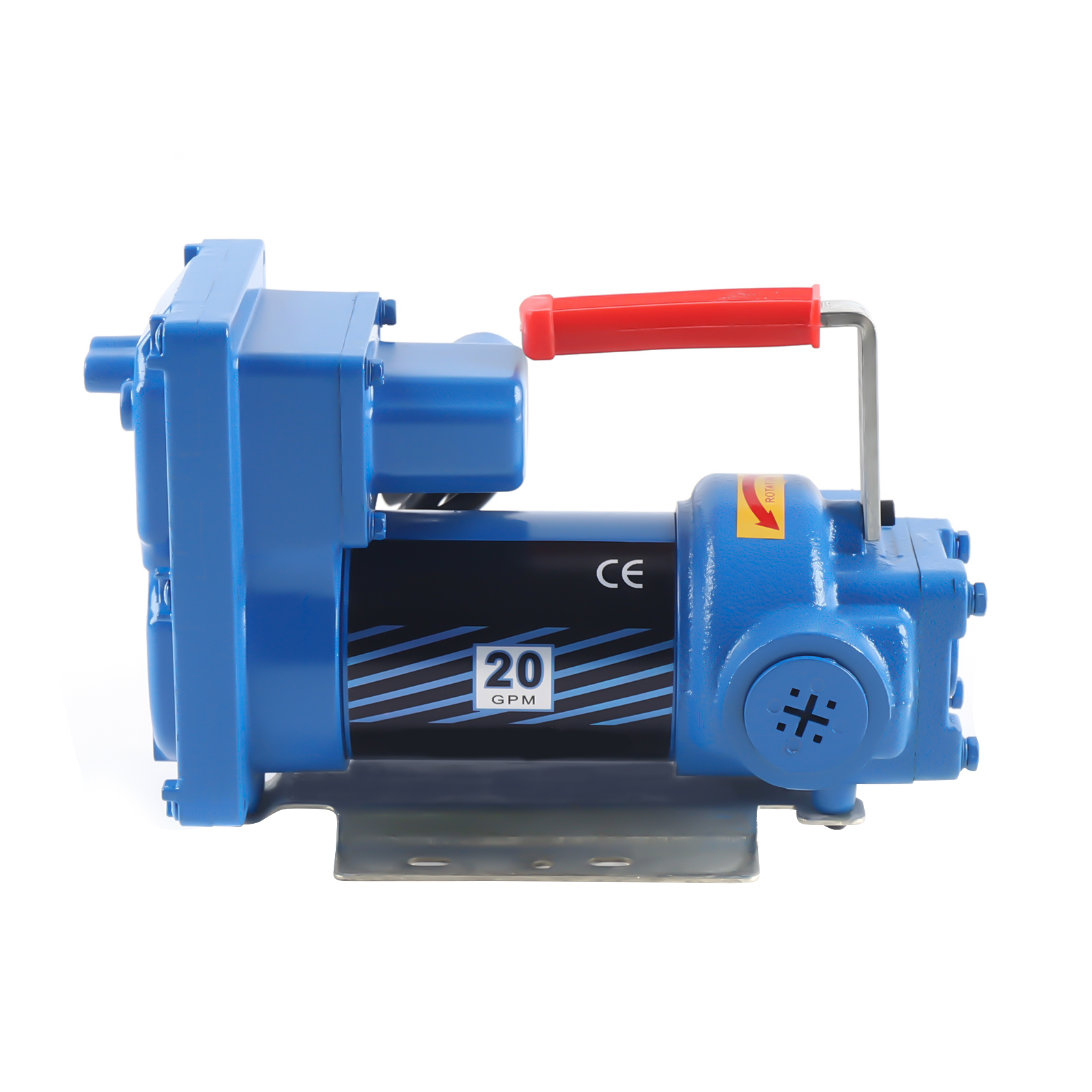

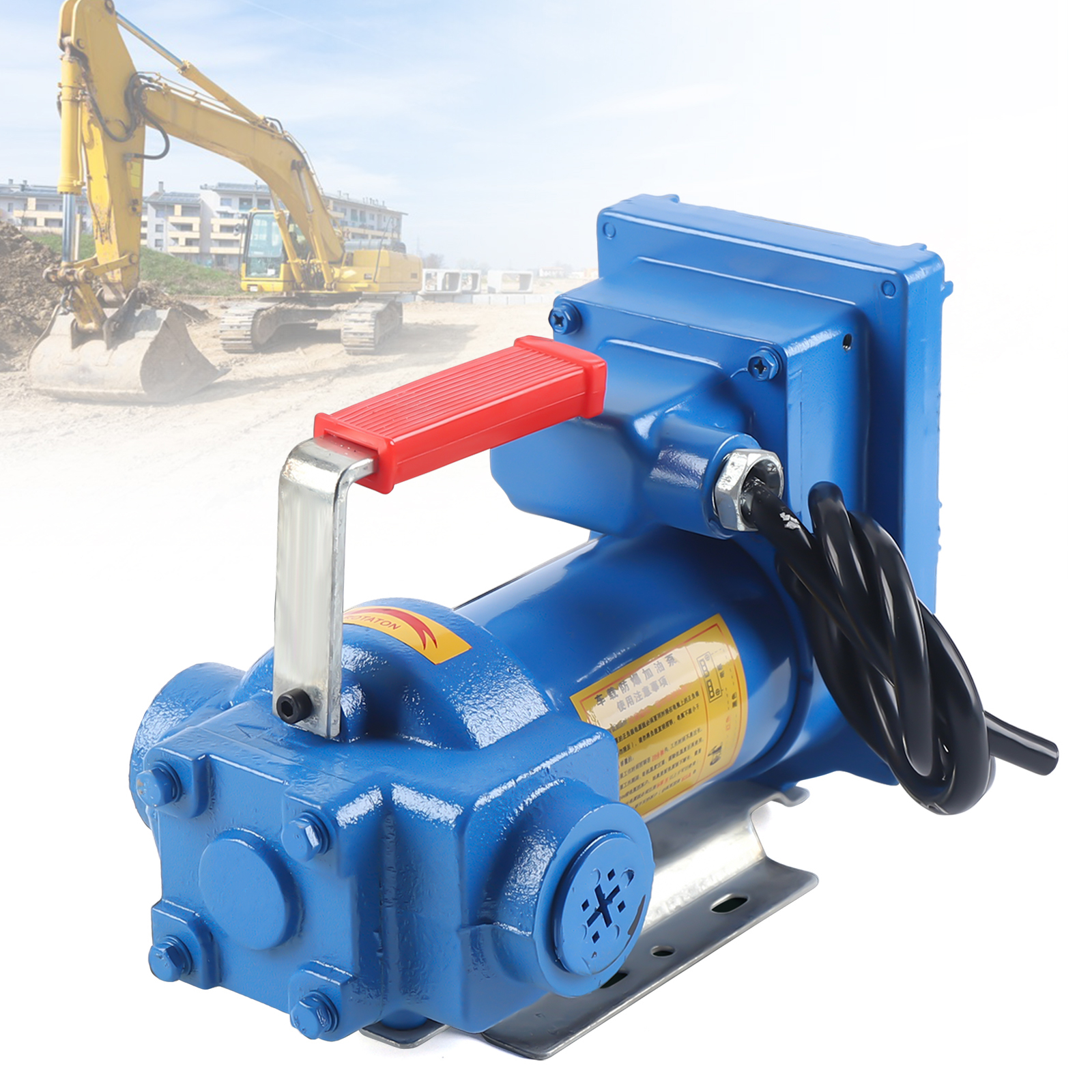

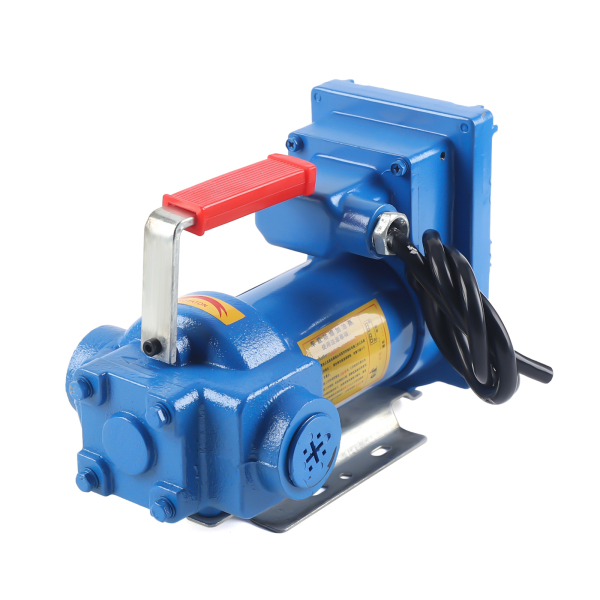

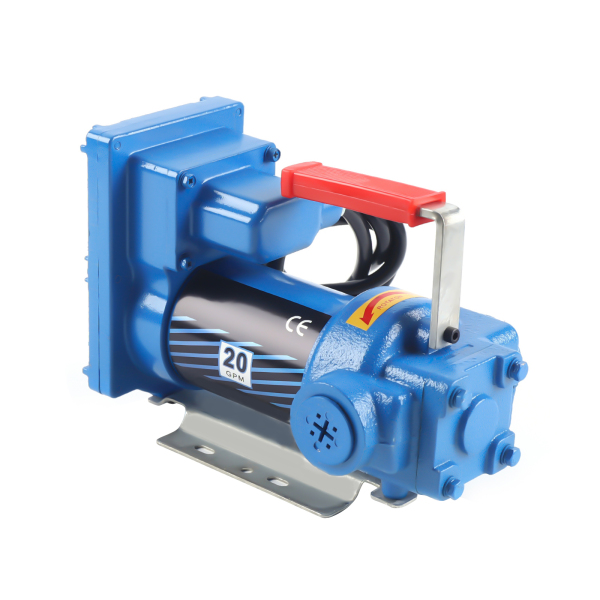

●One of the Best Pumping Solutions in the Market, Our Diesel/Oil Pump Is Simply Designed to Perform with Accuracy, Speed and Reliability.
●Featuring a Class-leading 240W 24VMotor, the Pump Dispenses and Transfers Diesel, Oil or Gasoline Kerosene at a Fast-flowing 35-45 Litres per Minute with Its High Performance Nozzle.
●Ideal for Home or Commercial Use, the Diesel/Oil/Gasoline/Kerosene Pump Is Truly an Outstanding Buy for You. Also Ideal for Filling or Emptying Diesel and Oil Storage Tanks.
●All Copper Wire Motor, Explosion-Proof Design, Long Life, High Lift.
●Explosion Proof Copper Impeller, Pumping Gasoline More Assured.

Can Be Used As a Fuel Supply Device for Field-working Vehicles like Engineering Vehicles, Excavators, Bulldozers, Road Rollers, Cement Mixers, Lifters, Trucks, Fuel Compressors, Mining Machinery and Farming Machinery.

The base can be installed and fixed directly.

Commodity Parameters:
Pump size only (CM): 28 x 18 x 18 (11.02 * 7.09 * 7.09 in)
Weight: 10.000 kg (22.05 lb)
Pump shaft position: Horizontal
Performance: explosion proof, non blocking, automatic
Impeller suction mode: single suction
Purpose: process pump
Material: Cast Steel

Driving Mode:
Principle: vane pump
Flow range: 35-45l / min
Working pressure: 3Mpa
Working voltage: 12V
Power: 240W
Import and export size: 1 inch thread (32mm)
Internal thread: 32mm
Nozzle size: 1 inch pipe (inner diameter: 25 mm)
Maximum capacity: 57-75l / min (depending on fluid type and head pressure)
Working medium: gasoline, diesel, kerosene, etc
Working medium temperature: normal temperature
Working mode: intermittent (do not work continuously for more than 20 minutes)
Wiring mode: the battery clamp is positive "+" in red and negative "+" in black
(please see clearly before connecting the power supply)

Be Careful:
1. After the positive and negative poles are connected, the oil pump will reverse, and the motor of the reverse oil pump will burn off for a long time.
2. Please confirm the rotation direction of the pump and the position of the oil outlet according to the arrow on the pump head (except for forward and reverse pumps)
3. It is installed in a dry and ventilated place. Please clean up the residual medium in the pump if it is not used for a long time.

Packing List:
Pump
